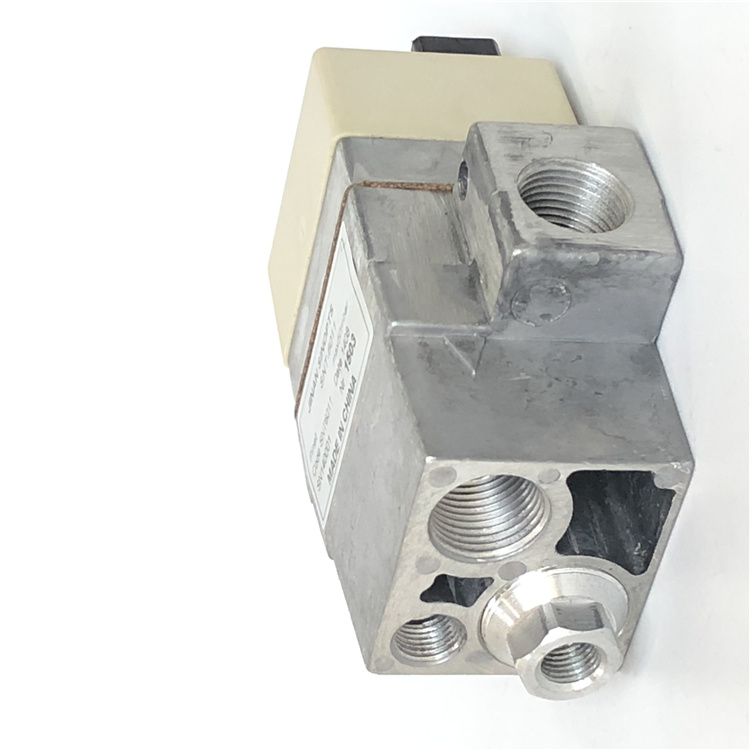

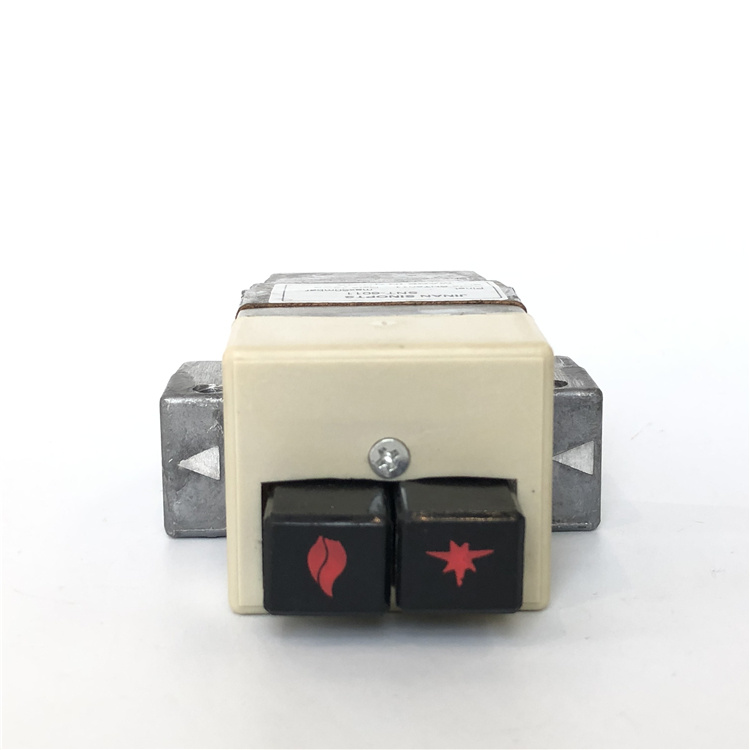

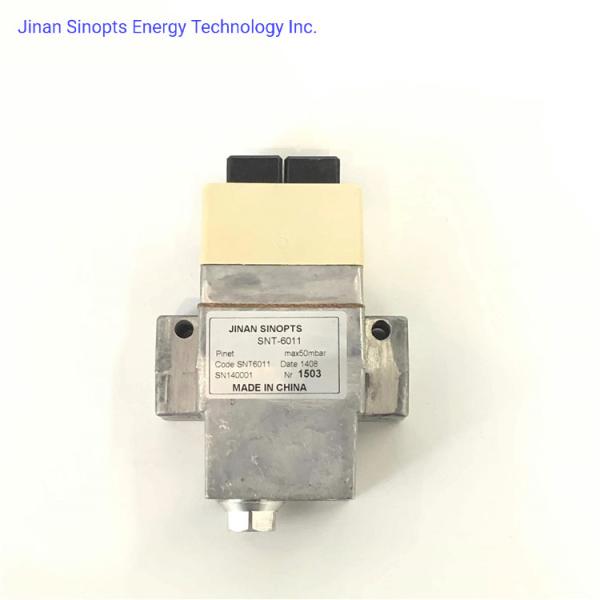

Gas Water Heater Thermostat Gas Control Valve

Model NO. : SNT-6011

Tolerance Range : 3~12ºC

Gas Source : Ng/LPG/Propane/Butane

Switch Apllication : Appliance Accessories

Insulation Resistance : >100mΩ

Temperature Resistance : Max. 320ºC

Appliance : Gas Oven, Gas/ Outdoor Heaters

Dielectric Strength : 2000V. AC 1min

Transport Package : Carton Box

Specification : Customized

Trademark : Sinopts

Origin : China

Certification : ISO9001, CE, CSA

Type : Gas Water Heater Parts

Material : Al

Form : Customized

Shape : Customized

Diff. Range : 1~17ºC

Samples : US$ 28.68/Piece 1 Piece(Min.Order) | Request Samp

Customization : Available | Customized Request

Contact Now

Product Description

Product Application

Multifunctional safety gas controls valve are suitable for heaters and other appliances which require manual control at two flow levels.

Main Features

1) Thermoelectric flame supervision device with restart interlock.

2) Pilot gas rate adjuster.

3) With inlet and outlet pressure test points

4) Max capacity can be 5.0CBM/hours.

TECHNICAL SPECIFICATIONS
main gas connection	Rp1/2 or Rp3/8	usage gas	All gas
thermocouple connection	M9X1, M10X1	max gas inlet pressure	50 mbar
outlet pressure setting range	3-18mbar	flange fixing holes	M4X7
working temperature range	0-80ºC	mounting holes	5.0 diameter
pilot outlet	M10X1

Gas Water Heater Thermostat Gas Control Valve

Gas Water Heater Thermostat Gas Control Valve

1. 24h on line service
2. We can supply free spare parts for replacement if they are destroyed during devliery.
3. quick feedback and on time delivery, life long service.
4. competitive price with good quality
5. Have exported the product to many countries, such as Russia, Brazil, Uzbekistan,Australia, etc.
6. Good feedback from our customers.
